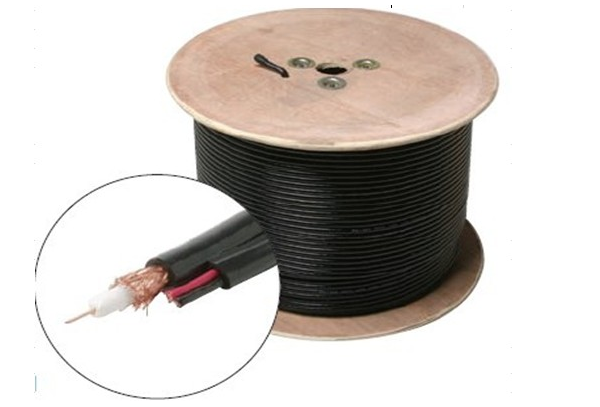

SINOWELL Copper CCA CCS Power + rg6 siamese cable 1000 ft Spool Indoor
Specification:
| CONDUCTOR | MATERIAL | CCS |
| Nom. Dia. | 1.02mm |
| DIELECTRIC | MATERIAL | Foamed PE |
| Nom. Dia. | 4.57mm |
| SHIELD | MATERIAL | Al foil+144*0.12mm Al-mg braiding |
| Coverage | 95% |
| JACKET | MATERIAL | PVC |
| Nom. Thick | 0.8mm |
| Nom. Dia. | 6.8mm |
| POWER CABLE SPECS | [2*(20*0.19CCA + PE ) + PVC ] |
| Nominal Impedance(Ohm) | 75±3 |
| Nominal Velocity of Propagation(%) | 85 |
| Nominal Capacitance(pF/m) | 50 |
| Sparker Test(VAC) | 4000 |
| SRL(dB) | 20 |
| Attenuation (68ºF/20ºC) |
| Frequency(MHz) | Maximum(db/100ft) | Maximum(db/100m) |
| 5 | 0.58 | 1.9 |
| 55 | 1.6 | 5.25 |
| 187 | 2.85 | 9.35 |
| 300 | 3.55 | 11.64 |
| 450 | 4.4 | 14.43 |
| 600 | 5.1 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.1 | 20.01 |
| 1000 | 6.55 | 21.49 |
| 1 ) Inner conductor | Tinned Copper , Bare Copper , and Copper Clad Steel available |
| 2 ) Al-foil | unbonded AP , Bonded AP , APA , Bonded APA available |
| 3 ) Braiding material | Al-mg , CCA , Bare Copper and Tinned Copper wire available |
| 4 ) Braiding wire diameter | 0.12 , 0.13 , 0.14 , 0.15 , 0.16mm available |
| 5 )Braiding net | 80 , 96 , 120 , 128 , 144 and more available |
| 6 ) Braiding coverage | Between 30- 97% available |
| 7 ) Jacket material | PVC , PE Flame retardant , UV , Rohs , available |
Description:
| Nominal Dimensions | Standard | Tri-shielding | Quad-shielding |
| Conductor | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) |
| Dielectric | 4.57mm(0.180 in) | 4.57mm(0.180 in) | 4.57mm(0.180 in) |
| Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
| Shielding 2 | 0.12mm*64(40% coverage) | 0.12mm*80(60% coverage) | 0.12mm*144(90% coverage) |
| Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
| Shielding 4 | - | | 0.12mm*64( 40% coverage) |
| Jacket | 6.91mm( 0.272 in) | 7.06mm( 0.278 in) | 7.62mm( 0.300 in) |
| Messenger | 1.3mm (0.051 in) Zinc plated steel |
Applications:
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
3. For security systems
Competitive Advantage:
1. Professional manufacturer, 100% tested, free samples are available.
2. OEM service with 10-years’experience, manufacturing according to your requests.
3. Physical Stock for fast delivery
4. Customers solutions in days, not weeks.
5. Warmly services with careful attentions.
6. Specific inquiry will be responded within 24 hours.
7. Delivery Time: 3-5 days for samples; 5-25 days for batch goods.
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.
2. By sea
Shipments will be operated under FOB conditions.
